Home > products > Automotive Wiring Harness > Vehicle Side Connector J1962 OBDII J1962OBD pinout,

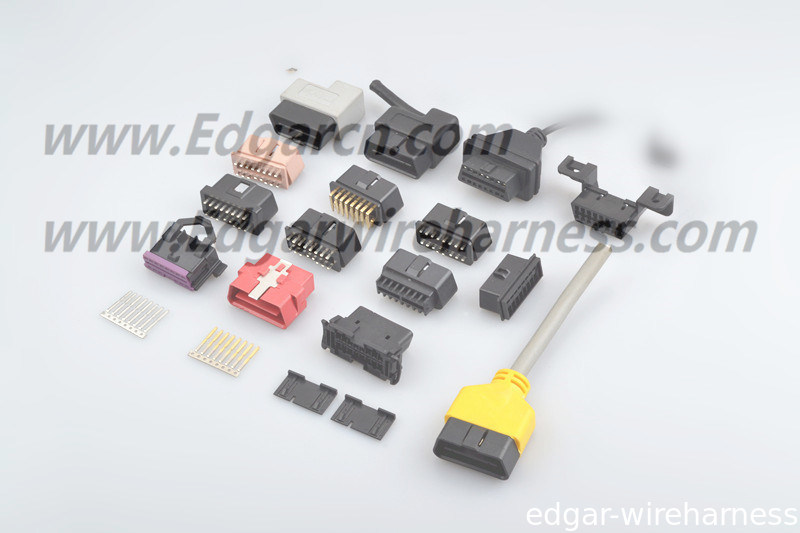

Vehicle Side Connector J1962 OBDII J1962OBD pinout,

Name: Vehicle Side Connector J1962 OBDII J1962OBD pinout,
Brand: Edgar Auto Harnesses LTD
SKU: Edgar wireharness
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: Edgarcn / Edgarwireharness

Certification: IATF16949 / UL / Rohs /CE

Model Number: Edgar wireharness

Payment & Shipping Terms

Minimum Order Quantity: 500per day,3000 per week

Price: USD 10-15 per pcs

Packaging Details: Catons

Delivery Time: 10-15 days

Payment Terms: T/T

Supply Ability: 50k/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Connector-Nylon:	Color Black	Wire-PVC:	All Color
Stand Type:	J1962 OBDII 24V

Connector-Nylon:	Color Black
Wire-PVC:	All Color
Stand Type:	J1962 OBDII 24V

Product Description

Vehicle Side Connector J1962 OBDII

J1939 Female to J1962 OBDII Female

J1939, OBD2, UDS, and J1708 for heavy-duty and light-duty vehicles. The family implements J1939 to RS232, J1939 to USB, J1939 to Bluetooth (including BLE), and wireless J1939 to WiFi (802.11b) interfaces, with support for Android and iOS devices. All devices support dual J1939, OBD2, UDS, and CAN networks and a single J1587/J1708 network.

The family was designed to meet the demanding bandwidth requirements of J1939 and the critical timing of J1708. The VNA devices provide internal buffers with up to 300 filters, largely reducing the overhead for the host. The adapters identify protocol errors, inter-character spacing, idle line detection, collision detection, and implements automatic retries.

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 0

OBD-II diagnostic connector[edit]

Female OBD-II connector on a car

Type A female connector

Type B female connector

The SAE J1962 specification provides for two standardized hardware interfaces, called type A and type B. Both are female, 16-pin (2x8), D-shaped connectors, and both have a groove between the two rows of pins, type B having a groove interrupted in the middle. This prohibits the insertion of a type A male plug while still allowing a type B male plug to be inserted into a type A female socket.

The type A connector is used for vehicles that use 12V supply voltage, whereas type B is used for 24V vehicles and it is required to mark the front of the D-shaped area in blue color.

SAE J1962 defines the pinout of the connector as:

Female OBD-II connector pinout – front view

1	Manufacturer discretion: GM: J2411 GMLAN/SWC/Single-Wire CAN^[22] VW/Audi/BMW: Switched +12V to tell a scan tool whether the ignition is on. Ford, FIAT: Infotainment CAN High^[22]	9	Manufacturer discretion: BMW: TD (Tachometer Display) signal aka engine RPM signal. GM: 8192 bit/s ALDL where fitted.
2	Bus Positive Line of SAE J1850 PWM and VPW	10	Bus Negative Line of SAE J1850 PWM only (not SAE J1850 VPW)
3	Manufacturer Discretion: GM: Object Detection CAN bus (+) Ford: DCL(+) Argentina, Brazil (pre OBD-II) 1997–2000, USA, Europe, etc. Ford: Medium Speed CAN-High^[22] Chrysler: CCD Bus(+)^[22] BMW: Ethernet RX+	11	Manufacturer Discretion: GM: Object Detection CAN bus (-) Ford: DCL(-) Argentina, Brazil (pre OBD-II) 1997–2000, USA, Europe, etc. Ford: Medium Speed CAN-Low^[22] Chrysler: CCD Bus(-)^[22] BMW: Ethernet RX-
4	Chassis ground	12	Manufacturer discretion: GM: Chassis high-speed CAN bus (+) GM: Diagnostic codes to DIC (1994–2004 Corvette)^[21] BMW: Ethernet TX+
5	Signal ground	13	Manufacturer discretion: GM: Chassis high-speed CAN bus (-) Ford: FEPS – Programming PCM voltage BMW: Ethernet TX-
6	CAN-High (ISO 15765-4 and SAE J2284)	14	CAN-Low (ISO 15765-4 and SAE J2284)
7	K-Line of ISO 9141-2 and ISO 14230-4	15	L-Line of ISO 9141-2 and ISO 14230-4
8	Manufacturer discretion: BMW: Second K-Line for non OBD-II (Body/Chassis/Infotainment) systems. Ford, FIAT: Infotainment CAN-Low. BMW: Ethernet Enable via 510 Ohm, 0,6 Watt resistance to battery voltage (pin 16)	16	Battery voltage: Type "A" 12V/4A Type "B" 24V/2A

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 4

J1939 Female to J1962 OBDII Female

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 5

J1962 OBD2 Female to J1939 Female

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 6

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 7

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 8

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 9

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 10

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 11

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 12

Edgar wireharness Vehicle Side Connector J1962 OBDII J1962OBD pinout, 13

Edgar wireharness Vehicle Side Connector J1962 OBDII J1962OBD pinout, 14

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 15

Edgar wireharness

Vehicle Side Connector J1962 OBDII J1962OBD pinout, 16

Edgar wireharness Vehicle Side Connector J1962 OBDII J1962OBD pinout, 17
